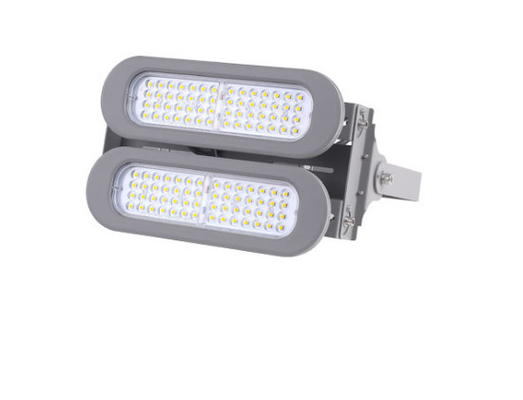

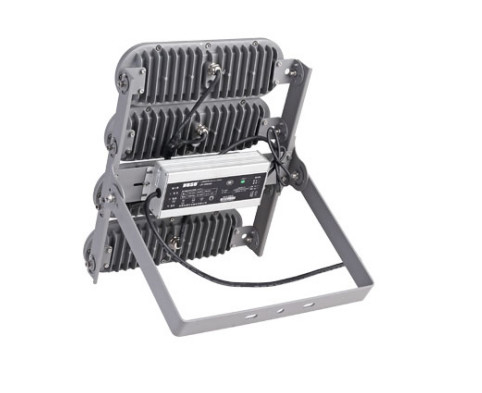

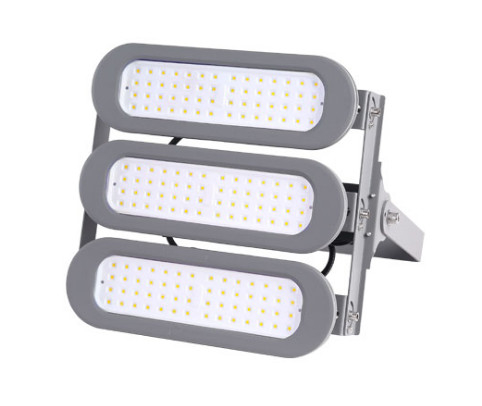

Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground

Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground

  • Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground
  • Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground
  • Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground
Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground
Product Details:
Place of Origin: China
Brand Name: Aina
Certification: CE, ROHS
Model Number: AN-FL-296-180W
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 per week
Contact Now
Detailed Product Description
Light Source: LED Item Type: Spot LIght
Input Voltage(v): AC90-305V Lamp Body Material: Aluminum
Warranty(years): 5 Cri (ra>): 80
Working Temperature(℃): -40 - 40 Power: 45W-180W
High Light:

ip66 led stadium flood light

,

180w led stadium flood light

,

playground 45w led stadium light

High luminous led projector lights 180w led Light football playground led projector lights



OVERVIEW



Feature

High Luminous Efficiency: up to 110lm/w.

Multiple options of beam angle to meet different application requirement: 30°, 45° .60°, 90°, 110°.

Light directions can be adjusted according to application requirement. □ IP66. □ Glass: IK06, PC lens: IK08.

Long lifespan: L80>36,000 Hrs.

Excellent Heat Extraction: each module works separately and housing for LEDs and power supply are separate.

Anti-glare.

To be compatible with Light control system.

Low weight & small size for easy mounting and maintenance,each 45w light module only 2.7kgs, up to 5.7kgs(200w)



Basic Specification

Light power 45w/90w/135w/180w Bracket material SPCC
Beam angle 30/60/90/110 IP IP66
Operation temperature -40 to 40 Input AC90-305V

Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground 0

Installation

1. Fix the lamp to the embdded part, as show figure

2. Connect the access line to the IP66 termination, as show figure

3. Adjust the degree of the lamp to an appropriate place,then push the bexagon wrench in the anti-clockwise direction until the U-shape bracket can be turned loose, and adjust the projected direction of lamp to the appropriate position(right angle adjusting lange: - 90°~90°). Pull the hexagon wrench clockwise until the U-shaped bracket is not loose. As show figure

4. After check, turn on the power.

Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground 1

Delivery & Warranty

Selling Unites: Single Item

MOQ: 1000 pieces for each model

Customization: Customized Logo -1000 pieces / Customized Package- 10000 pcs

Production time: 5-7 days for samples / 10-15 days for standard orders

Warranty: 2-3 years

Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground 2

After sales service

1. We will not refund without reason.

2. If some items are damaged during delivery due to some objective reasons, we will not refund in full. But we can accept a partial refund to compensate the damaged part.

3. If the product has quality problems, you can take pictures and videos for us. When we confirm, we will provide you with a satisfactory solution and return the damaged parts

4. If imitating a big brand product, please do not compare its quality with the original product. Because price determines quality.

Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground 3

Shipment

Seaport: Tianjin, Shanghai or Shenzhen

Production time:

The prepare time for item for samples is 7-10 days

The production time for normal order is 10-20 days

Others:

All the items will be test before shipment.

All the goods are sent from China for now.

All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.

Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.



Packing
With years of export experience along with excellent quality, advanced services and competitive prices, Aina Lighting has won numerous customers' trust and support.





FAQ

Q: How to find us?

A: Our email: sales@aina-4.com or whatsapp or wechat: +8613167511703



Q: How can I get the sample to check your quality?

A: After price confirmation, you can require for samples to check. The samples fee you paid will be return to you when there is formal orders step by step.



Q: How can I get your price?

A: We will send you quotation within 24 hours after getting your inquiry. If you need price urgent, you can find us any time by whatsapp or wechat or viber



Q: What is your delivery time

A: For samples, normally will take around 5 days. For Normal order will be around 10-15 days



Q: What about the trade terms?

A: We accept EXW, FOB Shenzhen or Shanghai, DDU or DDP. You can choose the way which is the most convenient or cost effective for you.



Q: Can you add our logo on the products?

A: Yes, we can offer service of adding customers’ logo.



Q: Why Choose us?

A: We have three factories in different places focusing one different type of lights. We can offer more lighting choices for you.

We have different sales office, can offer you more Awesome services



Ac90-305v Ra80 Ip66 Led Stadium Flood Light 45w To 180w For Playground 4
