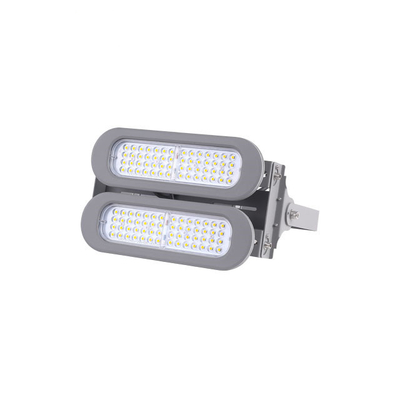

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights

  • Exterior IP66 Arena 150w 100w Led Stadium Flood Lights
  • Exterior IP66 Arena 150w 100w Led Stadium Flood Lights
  • Exterior IP66 Arena 150w 100w Led Stadium Flood Lights
  • Exterior IP66 Arena 150w 100w Led Stadium Flood Lights
Exterior IP66 Arena 150w 100w Led Stadium Flood Lights
Product Details:
Place of Origin: Shanxi
Brand Name: Aina Lighting
Certification: CE, ROHS
Model Number: 296TG
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD 66/pc-USD 164/pc
Packaging Details: Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 200000pcs/Year
Contact Now
Detailed Product Description
Power: 50W/100W/150W/200W Item Type: LED Stadium Flood Light
Input Voltage: AC90-305V Material: Die Casting Aluminum+PC LENS/Tempered Glass
Warranty: 5 Years Working Lifetime(H): 100000H
Color Temperature(cct): 3000-6500K Led Light Source: SMD
Model Number: 296TG Lamp Luminous Efficiency(lm/w): >120lm/W
IP Rating: IP66 Beam Angle: 30°, 60°, 90°, 120°
Working Temperature(℃): -40 - 40℃ CRI (Ra>: 70/80
Certification: CE, RoHS, EMC, LVD

Product Show



Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 0

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 1

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 2

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 3

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 4

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 5

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 6

Basic Specification



Place of Origin
China
Brand Name
Aina Lighting
Model Number
AN296TG
Application
Sports Stadiums
Color Temperature(CCT)
3000-6500K
IP Rating
IP66
Lamp Body Material
Aluminum+PC LENS
Beam Angle(°)
30° 60° 90° 120°
CRI (Ra>)
80
Input Voltage(V)
AC90-305V
Lamp Luminous Efficiency(lm/w)
120lm/W
Lamp Luminous Flux(lm)
20700
Warranty(Year)
5-Year
Working Lifetime(Hour)
100000
Working Temperature(℃)
-40℃~40℃
Certification
EMC, RoHS, ce, LVD
Light Source
LED
Product Weight(kg)
2.7 ,3.7 ,4,7 5.7
Material
Aluminum+PC LENS
Power
50W 100W 150W 200W
PF
>0.9
Output Voltage
42V
IP Rating
IP66
Frequency
50/60HZ
Output Current(mA)
960-3840
Power Efficiency
≥95%
Number of LEDs
56-224



No. Model No. Number of LEDs Beam Angle IP Rating Class Operation Temperature(°C) Weight(kg)
1 296TG50(1)/AC 56 pieces

30°

60°

90°

120°

IP66 CLASS I -40~40 2.7
2 296TG100(2)/AC 112 pieces 3.7
3 296TG150(3)/AC 168 pieces 4.7
4 296TG200(4)/AC 224 pieces 5.7

2. 296TG Electrical Parameter

No. Model No. Rated Power Input Voltage(V)

Output Voltage

(V)

Output Current

(mA)

Power

Factor

Power

Efficiency

1 296TG50(1)/AC 50w 176~305 42 960 ≥0.9 ≥90%
2 296TG100(2)/AC 100w 176~305 42 1920 ≥0.9 ≥95%
3 296TG150(3)/AC 150w 176~305 42 2880 ≥0.9 ≥95%
4 296TG200(4)/AC 200w 176~305 42 3840 ≥0.9 ≥95%



No. Model No. Beam Angle(°) CRI Color Temperature(K) Luminous Efficiency
(lm/W)
Lumen Output(lm)
1 296TG50(1)/AC 30°
60°
90°
120°
70 3000/4000 115 5750
5000/5700/6500 120 6000
2 296TG100(2)/AC 70 3000/4000 115 11500
5000/5700/6500 120 12000
3 296TG150(3)/AC 70 3000/4000 115 17250
5000/5700/6500 120 18000
4 296TG200(4)/AC 70 3000/4000 115 23000



Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 7

Featurte



1. High Luminous Efficiency: > 120lm/w.
2. Multiple options of beam angle to meet different application requirement: 30°, 60°, 90°, 120°.

3. Light directions can be adjusted according to application requirements.
4. IP Rate: IP66.
5. Glass: IK06, PC lens: IK08.
6. Long lifespan: L80>36,000 Hrs.
7. Excellent Heat Extraction: each module works separately and housing for LEDs and power supply are separate.
8. Anti-glare.
9. To be compatible with the Light control system.
10. Low weight & small size for easy mounting and maintenance, each 50w light module only 2.7kgs, up to 5.7kgs(200w).

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 8

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 9

Application



Factories, Stadiums, Docks, Billboards, Buildings, Lawns, Gardening Design, Square, Theme Park



Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 10

Packing



With years of export experience along with excellent quality, advanced services and competitive prices, GY LED Lighting has won numerous customers' trust and support.

Exterior IP66 Arena 150w 100w Led Stadium Flood Lights 11

Shipment

Seaport: Tianjin, Shanghai or Shenzhen
Production time:
The prepare time for item for samples is 7-10 days
The production time for normal order is 10-20 days
Others:
All the items will be test before shipment.
All the goods are sent from China for now.
All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.
Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.
