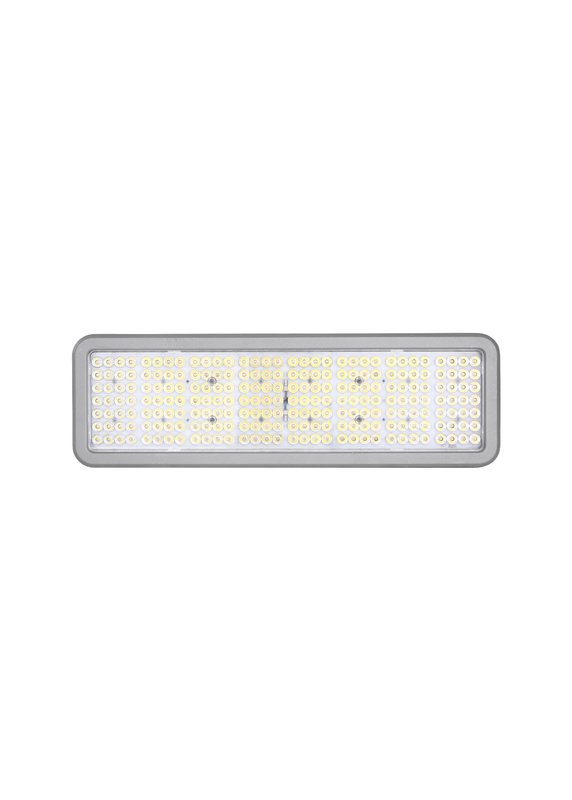

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light
Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light
Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light
Product Details:
Place of Origin: Shanxi
Brand Name: Aina Lighting
Certification: CE, ROHS
Model Number: 496TG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD 244.9-USD 975/pc
Packaging Details: Carton 300*580*190cm , 410*580*260cm ,580*580*260cm
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 200000pcs/Year
Contact Now
Detailed Product Description
Item Type: High Mast Flood Light Power: 200W/400W/600W/800W
Input Voltage(v): AC100-277V CRI (Ra>): Ra70/80
PF: >0.95 Ip Rating: IP66
Color Temperature: 3000/4000/5000/5700K Lamp Luminous Efficiency(lm/w): 130LM/W
Frequency: 50/60Hz Material: Die-casting Aluminum+PC Lens/Tempered Glass
Electric Safety Class: CLASS I Warranty: 5 Years
Working Lifetime(hour): 50000 Working Temperature(℃): -40 - 40℃
Style: Modern

Product Show





Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 0

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 1

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 2



Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 3



Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 4

Model No. GY496TG200(1)30°/220AC GY496TG400(2)30°/220AC GY496TG600(3)30°/220AC GY496TG800(4)30°/220AC
GY496TG200(1)60°/220AC GY496TG400(2)60°/220AC GY496TG600(3)60°/220AC GY496TG800(4)60°/220AC
GY496TG200(1)90°/220AC GY496TG400(2)90°/220AC GY496TG600(3)90°/220AC GY496TG800(4)90°/220AC
GY496TG200(1)120°/220AC GY496TG400(2)120°/220AC GY496TG600(3)120°/220AC GY496TG800(4)120°/220AC
Lamp Power (W) 200W 400W 600W 800W/1000W
CRI (Ra) 70/80 70/80 70/80 70/80
Luminous Efficiency (Lm/W) >130lm/W
Iutput Voltage (V) 176~305/ 90~305 176~305/ 90~305 176~305/ 90~305 176~305/ 90~305
Frequency (Hz) 47~63Hz 47~63Hz 47~63Hz 47~63Hz
Power Factor >0.95 >0.95 >0.95 >0.95
Class Class I Class I Class I Class I
Surge Protection Symmetrical mode: 6KV, common-mode: 10KV
Beam Angle(°) 13° /30° /60°/90°/120°/Asymmetric
Operation temperature —40℃ ~40℃ —40℃ ~40℃ —40℃ ~40℃ —40℃ ~40℃
Humidity less 90% less 90% less 90% less 90%
Lamp size (mm) 228*496*148 326*496*222 496*496*222 666*496*222
Packing Size (mm) 300*580*190 410*580*260 580*580*260 740*580*260
Weight (kgs) 6.3 13.4 21.7 28.2
Material Die-casting Aluminum Heat Sink + Steel Metal Bracket
IP rate IP66



FIXTURE POWER LIGHTING EFFICIENCY LUMINOUS FLUX POWER FACTOR BEAM ANGLE(°) BODY DIMENSIONS BODY WEIGHT
200W 130LM/W 26000LM >0.95 13/30/60/90/120 496*156*148mm 6.3kg
400W 130LM/W 52000LM >0.95 13/30/60/90/120 496*326*222mm 13.4kg
600W 130LM/W 48000LM >0.95 13/30/60/90/120 496*496*222mm 21.7kg
800W/1000W 130LM/W 130000LM >0.95 13/30/60/90/120 496*666*222mm 28.2kg



Feature

5 years warranty 200w 400w 600w 800w led high mast flood light football field Sports Projector lighting

Different beam angle,

Brackets and single module can be adjustable,

Ambient working temperature can be -40~55℃,

Mounting Height:10-50m.


496TG High Mast LED Flood Lights

Lighting solutions service:

Lighting and circuitry design, DIALux Evo layout, LitePro DLX layout.
Anti-glaring light is required more and more for applications where people don't feel comfortable with the glaring light, especially in the stadium. 496TG series floodlight is the ideal solution for visual protection.


Top Quality LED Driver
• Guarantee a Long Operation Life
• 6KV Surge Protection
• IP66 Waterproof


Top Standard LEDs
• > 120lm/W
• 125,000 hours life
• > Ra70
• High-Temperature Tolerance
• Better Light Maintenance
• Better Color Consistency
• Better Outdoor Stability


Description:

□ High Luminous Efficiency: up to 130lm/w;
□ Multiple options of beam angle to meet different application requirement:
13°,30°,60°,90°,120°, asymmetric lens;
□ Light directions can be adjusted according to application requirement;
□ Anti-glare;
□ To be compatible with Light control system;
□ Low weight for easy mounting and maintenance, each 200w light module only 6.3kgs, up to 28.2kgs(800w) ;
□ Mounting Height: 10~50m.

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 5

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 6

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 7

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 8

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 9

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 10

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 11

Application

This light is designed for outdoor places, especially for the stadium, sports field, hall, airport, dock, square, crane, etc.The adjustable brackets, as well as different beam angles, can meet different lighting requirements.

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 12

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 13

Packing & Delivery

• Foam Protection to Withstand Harsh Transportation and Impact

• Carton and Pallet with Foam and Cling Wrap to Withstand Impact, High Humidity in Containers, and Rainy Weather

• To Guarantee an Intact Condition when Receiving the Goods

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 14

Shipment

Seaport: Tianjin, Shanghai or Shenzhen
Production time:
The prepare time for item for samples is 7-10 days
The production time for normal order is 10-20 days
Others:
All the items will be test before shipment.
All the goods are sent from China for now.
All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.
Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 15

Company Profile



Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.

Football IP66 200w 800w 130LM/W Led High Mast Flood Light led crane light 16

After sale service

1. We will not refund without reason.
2. If some items are damaged during delivery due to some objective reasons, we will not refund in full. But we can accept a partial refund to compensate the damaged part.
3. If the product has quality problems, you can take pictures and videos for us. When we confirm, we will provide you with a satisfactory solution and return the damaged parts
4. If imitating a big brand product, please do not compare its quality with the original product. Because price determines quality.
