Name: High Lumen 200w 140w Led High Mast Light Stadium
Brand: Aina Lighting
SKU: 300/380TG/FG
Price: 104 USD
Availability: InStock
Rating: 4.5 (132 reviews)

Home Products LED Stadium Flood Light

High Lumen 200w 140w Led High Mast Light Stadium

Product Details:

Place of Origin:	Shanxi
Brand Name:	Aina Lighting
Certification:	CE, ROHS
Model Number:	300/380TG/FG

Payment & Shipping Terms:

Minimum Order Quantity:	50sets
Price:	USD 104/pc-USD 157/pc
Packaging Details:	Carton
Delivery Time:	5-7 days
Payment Terms:	L/C, T/T, Western Union.Paypal
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Power:	80W/120W/140W/200W	Color Temperature(CCT):	3000/4000/5000/5700K/6500K
Input Voltage(v):	AC100-240/277V	Lamp Body Material:	Die-casting Aluminum
CRI (Ra>):	70/80(optional)	Warranty(year):	5 Years
Lamp Luminous Efficiency(lm/w):	>130lm/W	Beam Angle:	30°/60°/80°/110°
Frequency:	50/60Hz	Item Type:	Outdoor LED Flood Light
Led Light Source:	High Power LED	IP Rating:	IP65
Electri Safety Class:	CLASS I	Power Factor:	＞0.95
Working Lifetime(hour):	100000H	Type:	Sport Stadium Led Flood Light
Certificate:	EMC, RoHS, Ce, LVD
High Light:	high lumen led high mast light , 140w led high mast light , 200w high mast lamp

Model No	AN300TFG
power	80W/120W
CCT	3000K-6500K
lumen Output(lm)	9600-10400,14400-15600,
Luminous Efficiency(lm/w)	120-130
CRI(Ra)	70
Inutput Voltage	AC100-240/277V
Frequency(Hz)	50/60
Power Factor	＞0.95
Power efficiency	90%-92%
Surge Protection	10KV
L80@55°	96.68% ,97.14%
Beam Angle(°)	30/60,110
Operation Temperature	-40℃-40℃
Humidity	0-90%
Lamp Size(mm)	300300261
Packing Size(mm)	700350340
Weight(kg)	5.3
Material	Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC
IP/IK	IP65/IK08
Warranty	5 years

Model No	AN 380TG
Power(w)	140W/200w
Color Temperature	3000K-6500K
Lumen Output(lm)	16800-18200,24000-26000
Luminous Efficiency(lm/w)	120-130
CRI(Ra)	70
Iutput Voltage(V)	100-240
Frequency(Hz)	50/60
Power Factor	＞0.95
Power Efficiency	88%-89% 88%-90% 88%-91%
Surge Protection	10KV
L80@55°	96.68%,97.14%
Beam Angle(°)	30/60/110
Operation Temperature	-40℃-40℃
Humidity	0-90%
Lamp Size(mm)	380380261
Packing Size(mm)	430430400
Weight(kg)	7.5
Material	Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC
IP/IK	IP65/IK08
Warranty	5years

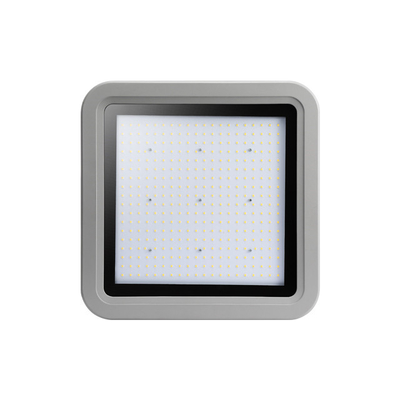

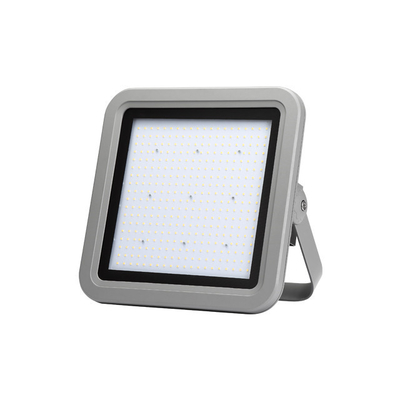

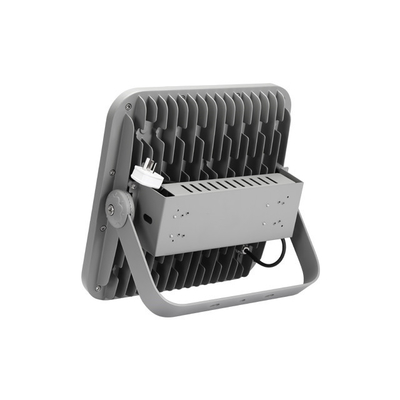

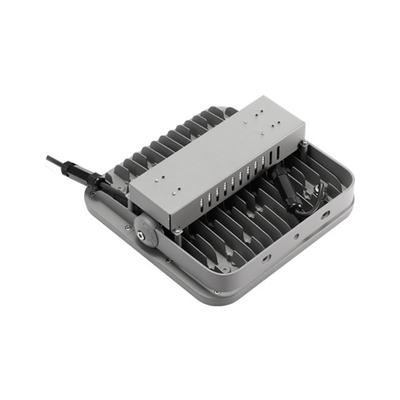

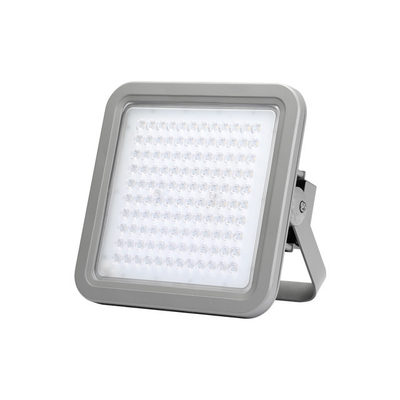

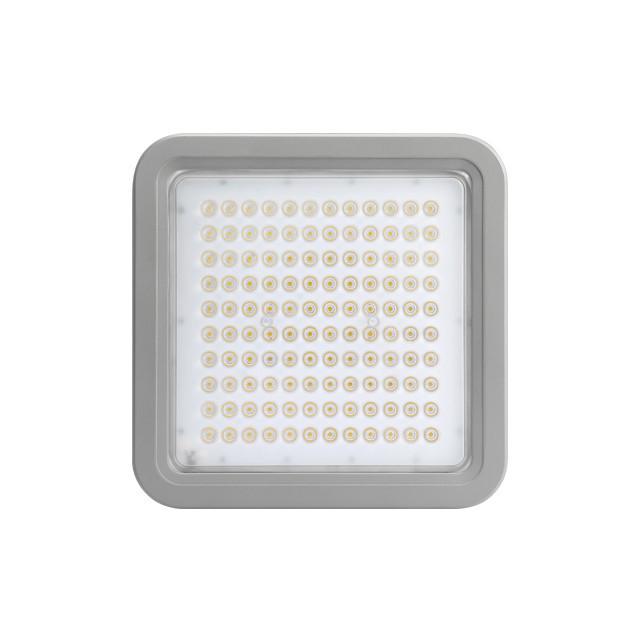

Product Show

High Lumen 200w 140w Led High Mast Light Stadium 0

High Lumen 200w 140w Led High Mast Light Stadium 1

High Lumen 200w 140w Led High Mast Light Stadium 2

High Lumen 200w 140w Led High Mast Light Stadium 3

High Lumen 200w 140w Led High Mast Light Stadium 4

High Lumen 200w 140w Led High Mast Light Stadium 5

High Lumen 200w 140w Led High Mast Light Stadium 6

High Lumen 200w 140w Led High Mast Light Stadium 7

High Lumen 200w 140w Led High Mast Light Stadium 8

High Lumen 200w 140w Led High Mast Light Stadium 9

Feature

High lumen 140W 200W 5 years warranty high mast sports stadium flood light IP65
Optical Design, Anti-glare treatment.
High efficiency and energy saving

Distribution and applies a specially designed reflector that can be installed inside the fixture to realize different beam angles for achieving the various lighting distribution solutions of the luminaire.

AN300/380TFG LED High Mast Sports Stadium Flood Light

□ High Luminous Efficiency: up to 130lm/w;
□ Multiple options of beam angle to meet different application requirement: 30°, 60°, 80°, 110°;
□ External power supply(IP67), dimming function, and light control system can be added;
□ Low weight for easy mounting and maintenance,
120watt only 5.3kgs,200watt only 7.5kgs;
□ Adjustable U type bracket is easily for mounting.

Materials:

□ Housing: High-pressure die cast aluminum, first given a zinc chromate substrate, then finished in RAL7035 light grey polyester
powder coating for optimum protection against harsh environments
□ Front Glass(if any): Toughened glass, secured within an aluminum frame.
□ Bracket: Galvanized steel, with additional locking screws.
□ LENs(for some beam angles): Plastic.
□ LEDs: Samsung/Osram LED chips with LM80 in TM21 test report.
□ Driver: MOSO brand LED Driver with CE and TUV approval certificates.

Advanced Modular Aluminum Heat Sink
• High Thickness Modular Aluminum for Better Heat Dissipation
• Modular Design with Air Flow to Reduce Temperature
• Wide Power Range

PC Optical Lenses
• PC Material with High UV and Impact Resistance
• Multi Beam Angle Options
• High Transparency and High Efficiency

You can use our GY300/380FG LED flood light to replace your incandescent or fluorescent fixture and save up to 80% of your energy bill.
Once you install this light there will be free maintenance and 50000hrs lifespan.

Packing

With years of export experience along with ex

cellent quality, advanced services and competitive prices, Gunagyu Lighting has won numerous customers' trust and support.

ShipmentSeaport: Tianjin, Shanghai or Shenzhen

Production time:

The prepare time for item for samples is 7-10 days

The production time for normal order is 10-20 days

Others:

All the items will be test before shipment.

All the goods are sent from China for now.

All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.

Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.
