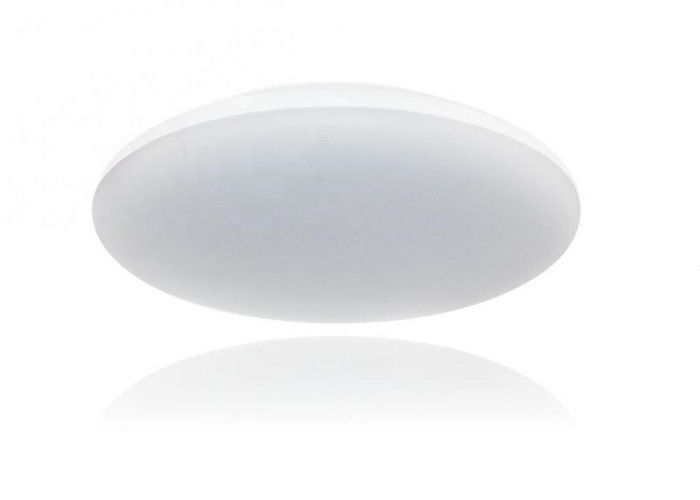

18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights

18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights

    • 18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights
    • 18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights
    • 18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights
    • 18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights
  • 18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights

    Product Details:

    Place of Origin: China
    Brand Name: Aina
    Certification: CE, ROHS, TUV
    Model Number: AN-XD-JY

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 5-7 days for samples
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 5000 pcs per month
    Contact Now
    Detailed Product Description
    Material: MS Power: 12W-24W
    Input: AC175-265V CCT: 2700K-6500K
    CRI: >80 PF: >0.5
    Chassis Size: 230,300,350 SMD Quantity: 12,18,24

    12W-24W MS or PMMA Cover Low Profile LED Round Ceiling Light for Homes



    Description

    Round Ceiling Light

    Power: 12W, 18W,24W

    Cover Material: MS

    Surface Mount Panel Light

    Input AC175-265V



    Features

    Intelligent design power driver overload, short circuit, undervoltage protection

    Brilliant shell multicolor selection

    No dark areas, no glare

    Lower Consumption



    Application

    Front Door, Patio, Toilet, Passengerway

    Anti-Theft Auto On/off With Motion Activated



    Packaging & Delivery

    Packaging Details: The packaging material usually are white box, color box or Blister

    Delivery: 5-7 days for samples. 15-20 days for big quantity orders



    Model Package Size (1 pc) Package Size (10 pcs)
    AN-XD-JY-12-01 25.6 x 6.6 x 26.5cm 68.5 x 28 x 28
    AN-XD-JY-18-01 33.4 x 7.35 x 33.4cm 76 x 35 x 35
    AN-XD-JY-24-01 38.5 x 7.4 x 38.5cm 77 x 40 x 40



    Other choice

    Model Package Size (1 pc) Package Size(10 pcs)
    AN-XD-JC-18-01 25.6 x 6.6 x 26.5 68.5 x 28 x 28
    AN-XD-JC-24-01 33.4 x 7.35 x 33.4 76 x 35 x 35
    AN-XD-JC-32-01 38.5 x 7.4 x 38.5 77 x 40 x 40



    Specification

    Model Power Input CCT EMC Material Chassis Size SMD Quantity SMD Model
    AN-XD-JY-12-01 12W AC175-265V 2700K-6500K No MS 230 12 2835-6v150ma/9v100ma
    AN-XD-JY-18-01 18W AC175-265V 2700K-6500K No MS 300 18 2835-6v150ma/9v100ma
    AN-XD-JY-24-01 24W AC175-265V 2700K-6500K No MS 350 24 2835-6v150ma/9v100ma



    Other Choice

    Model Power Input CCT PF SMD Quantity Chassis Size CRI Drive Material
    AN-XD-JC-18-01 18W AC176-264V 2700K-6700K >0.5 18 230 >80 IC PMMA, PVC, MS
    AN-XD-JC-24-01 24W AC176-264V 2700K-6700K >0.5 24 300 >80 IC PMMA,PVC, MS
    AN-XD-JC-32-01 32W AC176-264V 2700K-6700K >0.5 36 350 >80 IC PMMA,PVC, MS



    Usage

    18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights



    Cover

    18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights



    How to Install

    18w Round LED Ceiling Light 360 Degree , LED Surface Mount Ceiling Lights

    Step1 Open the lampshade by turning in counterclockwise

    Step2 According to the 3 screw bits on the lamp, drill 3 holes in the ceiling. And then insert the plastic screw anchors into the drilling holes

    Step3 Remove the orginal testing cord of the lamp by loosening the 3 crews in the wire connector of the lamp

    Step4 Pass your power cord through the hole of ceiling lamp chassic. Then connect the neutral line, live line and ground wire of power cord into the corresponding wiring ports of the connector

    Step5 Put 3 screws into the screw bits of lamp chassis, and then fix the lamp chassis onto the ceiling

    Step6 Put on the lampshade to lamp chassis by turning in clockwise



    Our Service

    We have our own R & D Group. Can design or improve lighting based on customers' requirements

    We have different production lines for different lighting. It can make the delivery time faster than others

    For all your inquies about us or our products, we will reply you in detail within 24 hours

    We own we-trained and passional sales & after-sale who can speak fluent Enlighs language

    We have very experienced R & D Engineers and we have strong ability to do ODM projects



    Trade Terms

    1 Payment term: TT deposit after order confirmed, the balance after goods ready before shipping or L/C, or western union for small amount

    2 Lead time: normally for big order is around 10-20 days

    3 Sample Policy: Samples are always available for each model. Samples can be ready in 3-7 days once payment received



    Aina is Guided by the Following Values:

    Candor and dignity - at all times

    Count the blessings-never forget to thank cusgtomers for their valued business
