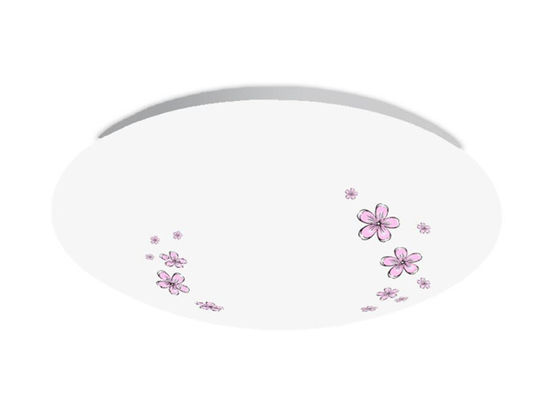

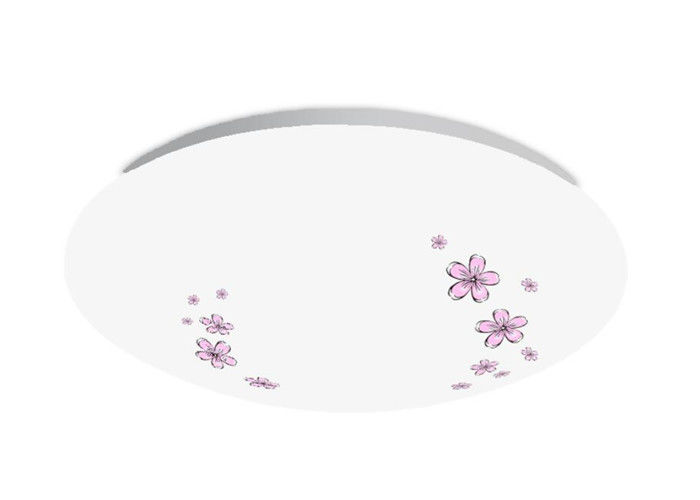

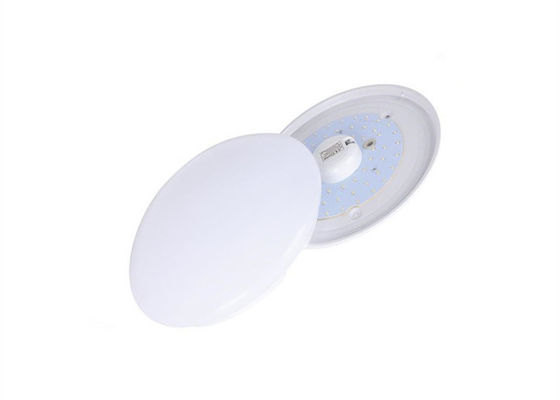

PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01

PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01

    • PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01
    • PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01
    • PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01
    • PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01
  • PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01

    Product Details:

    Place of Origin: China
    Brand Name: Aina
    Certification: CE, ROHS, TUV
    Model Number: AN-XD-JY-18-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 5-7 days for samples
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 5000 pcs per month
    Contact Now
    Detailed Product Description
    Chassis Size: 300 Material: PMMA
    SMD Quantity: 18 Power: 18W
    Input: AC175-265V CCT: 2700K-6500K
    CRI: >80 PF: >0.5

    18W PMMA Round Modern Circular LED Room Ceiling Light AC175-265V Model AN-XD-JY-18-01



    Description

    Round Ceiling Light

    Power: 18W

    Cover Material: PMMA

    Surface Mount Panel Light

    Input: AC175-265V

    Opal Cover, the Based color is white

    Dimmable can be choosed



    Features

    No dark areas, No glare

    Smart power driver IC

    Intelligent design power driver overload, short circuit, undervoltage protection

    Low power Consumption

    Brilliant shell multicolor selection

    Lampshade optional, Can also depends on customers' design

    Easy to installation



    Driver

    Smart power driver IC

    Intelligent design power driver overload, short circuit, undervoltage protection

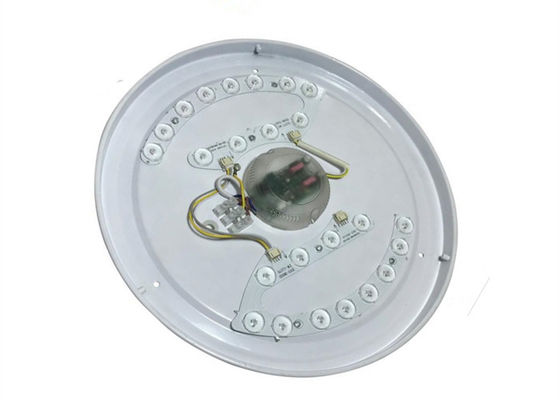

    Chips

    Chipes 5730 high-end LED chips

    High Color, light color consistency

    Light Stability

    Thick Metal chassis



    Application

    Ideal for corridor, Hallyway, Stairs, Warehouse, Parking Lot, Elevator Etc.

    Front Door, Patio, Toilet, Passengerway

    Underground Parking Lot

    Anti-Theft Auto On/off With Motion Activated



    Packaging & Delivery

    Packaging Details: The packaging material usually are white box, color box or Blister

    Delivery: 5-7 days for samples. 15-20 days for big quantity orders



    Model Package Size (1 pc) Package Size(10 pcs)
    AN-XD-JC-18-01 25.6 x 6.6 x 26.5 68.5 x 28 x 28
    AN-XD-JC-24-01 33.4 x 7.35 x 33.4 76 x 35 x 35
    AN-XD-JC-32-01 38.5 x 7.4 x 38.5 77 x 40 x 40



    Specification

    Model Power Input CCT EMC Material SMD Quantity
    AN-XD-JY-12-01 12W AC175-265V 2700K-6500K No PMMA 12
    AN-XD-JY-18-01 18W AC175-265V 2700K-6500K No PMMA 18
    AN-XD-JY-24-01 24W AC175-265V 2700K-6500K No PMMA 24



    Other Choice

    Model Power Input CCT PF SMD Quantity Chassis Size CRI Drive Material
    AN-XD-JC-18-01 18W AC176-264V 2700K-6700K >0.5 18 230 >80 IC PMMA, PVC, MS
    AN-XD-JC-24-01 24W AC176-264V 2700K-6700K >0.5 24 300 >80 IC PMMA,PVC, MS
    AN-XD-JC-32-01 32W AC176-264V 2700K-6700K >0.5 36 350 >80 IC PMMA,PVC, MS



    Usage

    PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01

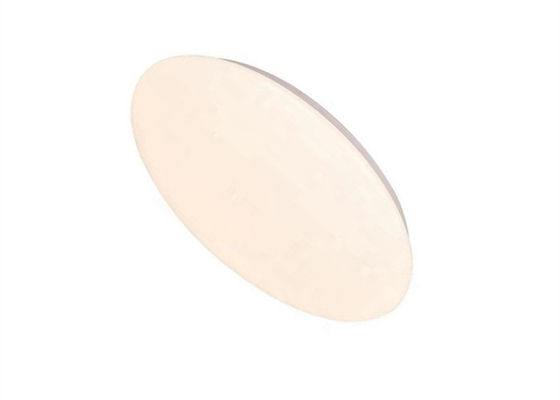

    Covers

    PMMA Round Circular Ceiling Mounted LED Lights 18 Watt AC175-265V AN-XD-JY-18-01



    Our Service

    Our quality inspection department can help customers to check all the items before shipment

    We have different production lines for different lighting. It can make the delivery time faster than others

    For all your inquies about us or our products, we will reply you in detail within 24 hours

    We own we-trained and passional sales & after-sale who can speak fluent Enlighs language

    We have very experienced R & D Engineers and we have strong ability to do ODM projects



    Trade Terms

    1 Payment term: TT deposit after order confirmed, the balance after goods ready before shipping or L/C, or western union for small amount

    2 Lead time: normally for big order is around 10-20 days

    3 Sample Policy: Samples are always available for each model. Samples can be ready in 3-7 days once payment received

    4 Shipping port: Shanghai or Shenzhen, China

    5 Discount: We offer discount for big quantity orders



    Aina is Guided by the Following Values:

    Never let profit get in the way of doing what is right for the customer

    Give customers a good, fair deal

    Always forge enduring relationships

    Always look for ways to make it easier for customers to do business with us

    Communicate with customers-they know better especially in real application

    Candor and dignity - at all times

    Count the blessings-never forget to thank cusgtomers for their valued business
