Name: Dc36v Ip65 Durable 3w Emergency Led Exit Light 5 Years Warranty With Long Life
Brand: Aina Lighting
SKU: 5817ZSDⅣ
Price: 1 USD
Availability: InStock
Rating: 4.6 (142 reviews)

Home Products Commercial LED Emergency Lights

Dc36v Ip65 Durable 3w Emergency Led Exit Light 5 Years Warranty With Long Life

Product Details:

Place of Origin:	China
Brand Name:	Aina Lighting
Certification:	CE,ROHS
Model Number:	5817ZSDⅣ

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Packaging Details:	Carton
Delivery Time:	Samples need 3-5 days
Payment Terms:	T/T, Western Union
Supply Ability:	10000

Contact Now

Detailed Product Description

Power:	3w/4w/5w/6w	Size:	580215195mm
Housing Color:	Green	IP Rating:	IP 65
Warranty:	5 Years	Input:	DC36V
Ra:	>70
High Light:	dc36v emergency led exit light , 3w emergency led exit light

Detailed Product Description

Power:	3w/4w/5w/6w	Size:	580215195mm
Protection Level:	CLASS III	Color Temperature(CCT):	Green Lighting
Working Temperature(℃):	-40-+50	Lamp Luminous Efficiency(lm/w):	120
Housing Color:	Green	Color Rendering Index(Ra):	70
Warranty(Year):	5-Year	Input Voltage(V):	DC36V
IP Rating:	IP65	Feature:	Long Life
Package Size:	640270260mm
High Light:	3w led exit light , 36v led exit light

Dc36v Ip65 Durable 3w Emergency Led Exit Light 5 Years Warranty With Long Life 0

Specification

item	value
Place of Origin	China
	Shanxi
Brand Name	Aina Lighting
Color Temperature(CCT)	Green lighting
IP Rating	IP65
Input Voltage(V)	DC36V
Lamp Luminous Efficiency(lm/w)	120
Warranty(Year)	5-Year
Working Lifetime(Hour)	50000
Working Temperature(℃)	-40-+50
Color Rendering Index(Ra)	70
Lifespan (hours)	50000
Working Time (hours)	50000
Power	3w/4w/5w/6w
Housing color	Green
Protection Level	CLASS III
Net weight	3.9kg
Light Source	LED
MOQ	100pcs
Size	580215195mm
Package size	640270260mm
Certification	CE/ROHS/EMC/LVD
Feature	Long Life

Feature

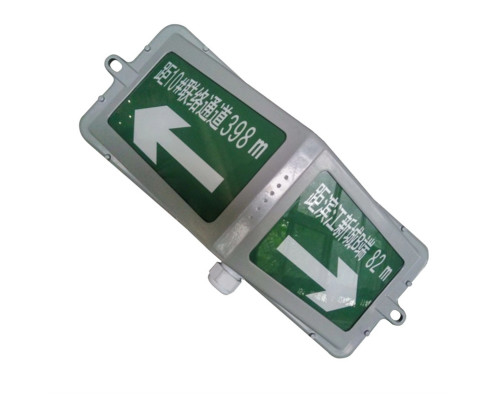

1) 5817ZSDIV fire evacuation indicator light is based on GB 17945-2010 "Fire emergency lighting and evacuation Indication System" and GB51309-2018 "Technical Specification for Fire Emergency Lighting and Evacuation Indication System" A type A fire evacuation indicator designed for tunnel use.2) Appearance design: The appearance of the lamps is simple and the instructions are clear.
3) Optical design: The lamp adopts LED light source + light guide plate + silk screen tempered glass, the brightness of the entire sign surface is uniform, Soft light visible to the naked eye.

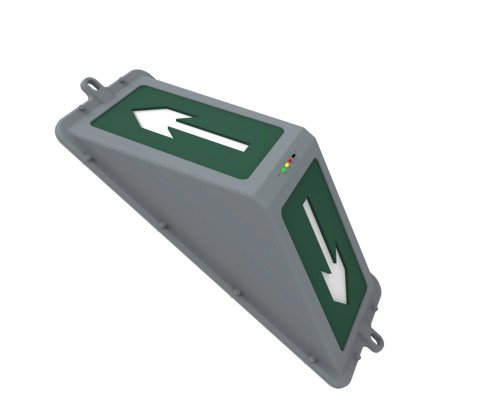

4) Structural design: Die-cast aluminum is used to form the lamp body at one time, and the shell of the lamp is a triangular three-dimensional design to ensure that the Evacuation signs are clearly visible. The lamps are front-opening lamps, and the glass can be replaced without dismantling the lamps. Set up a special electrical box, with built-in terminal blocks, and the wiring is firm.

5) Glass tempering: Strictly tempered 4mm thick glass is used as the sign surface, with high structural strength and high

resistance Good temperature performance and higher reliability in emergency situations.
6) Installation method: The lamps can be embedded or wall-mounted, which is convenient and quick to disassemble.

7) Low-level installation: The lamps are installed in a low-level position, no need for professional maintenance vehicles, easy disassembly and assembly, and low maintenance costs.

8) Protection level: The protection level of the lamp is IP65, which meets the outdoor installation environment.

9) Green environmental protection: It does not contain harmful elements such as mercury and lead.

Application
It is suitable for fixed lighting in places such as ramp anti-collision piers and tunnel anti-collision piers.
