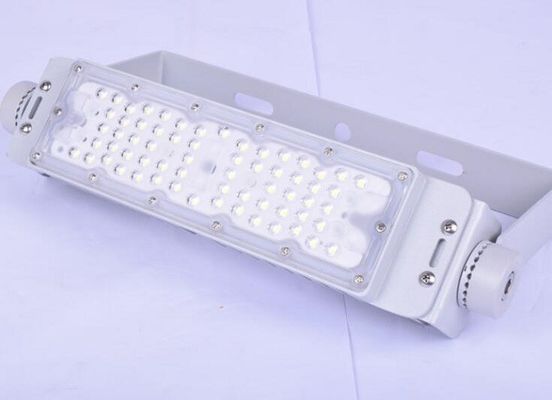

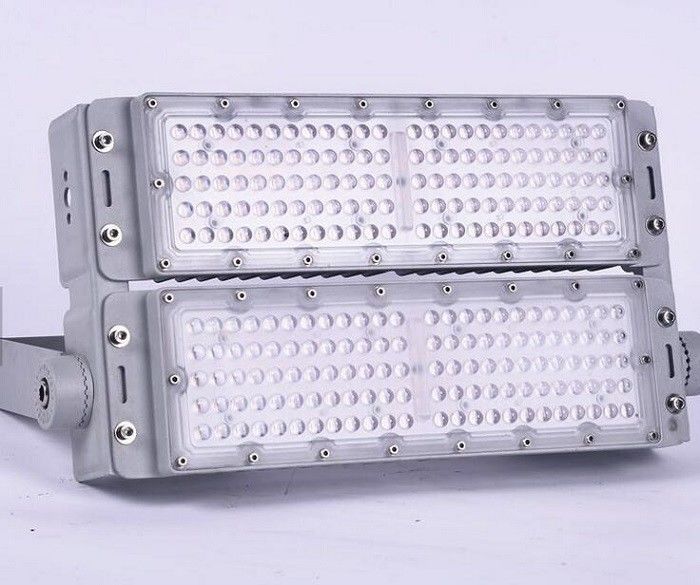

COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights

COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights

  • COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights
  • COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights
  • COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights
  • COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights
COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights
Product Details:
Place of Origin: China
Brand Name: Aina
Certification: CE, ROHS
Model Number: AN-FL-500w
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 pieces per day
Contact Now
Detailed Product Description
Light Source: LED Item Type: Spotlights
Input Voltage(v): AC85-265V Lamp Body Material: Aluminum
Warranty(years): 3 Cri (ra>): 80
Base Type: No Lamp Base Led Light Source: COB
Working Temperature(℃): -20 - 40
High Light:

IP66 LED Spot Flood Lights

,

SMD LED Spot Flood Lights

High Lumen SMD LED Flood Light Factory Waterproof IP66 from 100w to 1000w



Feature



LED Lens

Different LED lens for choice, 30°, 60°, 75°, 90°, 120° and 160°



LED Driver

High quality MW led driver, certified with CCC, CE, RoHS, PSE, FCC and so on.



Radiator

Radiator is made by die-casting aluminum with a clean design. Suitable for different applications and installations.



Material

Sprayed by special plastic powder, installed by SS304 stainless parts and outdoor wire.



Protection Level

IP66, satisfies the needs of long-time outdoor use.



Die-casting aluminium housing, heat sinke design increase more airflow for better heat dissipation. Environment friendly and no other pollution



IP65 water proof standard efficient protection. Waterproof IP65 can also be used for normal lighting in rainy days



Die-casting aluninum housing. It can adjust different angles of 30 degrees, 60 degrees, 90 degrees and 120 degrees to adapt to different scenarios.



The discouvery series floodlight is using branded driver, and high quality LED. With brightness 110lm/w lumen output

PCB Circuit: Mixed series and parallel circuit design makes that when there is one led burn. Then only one LED that burned does not work. But not the whole light.

5-years warranty includes both luminaire and driver. Suitable for indoor and outdoor use.



Application



No limit on the maximum power by assembling individual lights.
The angle of Set and each module can be adjusted according to the application case.
Can be used as projector light, flood light, industrial light, tunnel light, street light by using different angled lens







Advantage



· Waterproof IP66
By using waterproof connector and silicon rubber sealing, up to IP66, meeting the requirements for harsh, tough environment.

· Perfect Buckle design
Each piece also closely spaced fins remain equal engaging, form a whole, effectively enhance the fin firmness, combined with minimum weight for maximum heat dissipation area.



Speficiation



Power 500W, 400W, 600W Heads 5 heads
Input AC85-265V Size 515x400x150mm
Weight 15kg Package 530 x 415 x 180mm



Power 200w,400w,600w,800w Warranty 5 Years
Working Life 50000 hours Input AC86-265V
Working Temperature -40 to 50 degrees IP IP66



Power 100W,200W,300W,400W Input AC220-240V
LED SMD CCT 3000K-6500K
Ra >80 LPW 150LM/W



Power 50w,100w,200w, 400w, 600w Input AC85-265V
LED COB Ip IP66
Ra >80 LPW 130-140LM/W





Electrical


Input Voltage : 90-305VAC, 50/60Hz
Input Current : 1.364A/110VAC,0.682A/220VAC, 0.542A/277VAC
Power Factor : >0.95
Power efficiency : >90%






COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights 0COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights 1COB Aluminum Waterproof IP66 SMD LED Spot Flood Lights 2



FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.


Shipment

1. DHL(a big discount)
2. TNT/FedEx/UPS
3. Airway. About 3-5days you can get them by the door of your home or office.
4. Seaway.15-25 days. It will definitely save your shipping cost for the large order.
