| Place of Origin: | China |
| Brand Name: | Aina |
| Certification: | CE, ROHS, TUV |
| Model Number: | AN-LD32-100-A-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 days for samples |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 pcs per month |
| Material: | Aluminum Housing | Power: | 100W |
|---|---|---|---|
| Input: | AC100-347V | CCT: | 2700K-6500K |
| LPW: | 130LM/W | Size: | 667*141*365mm |
| Weight: | 6.5Kg | PF: | >0.95 |
| High Light: | industrial street light,exterior street lights |
||

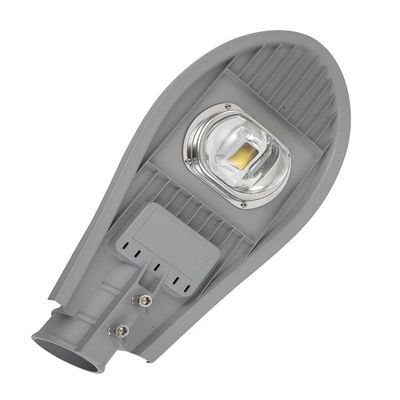

High Power New Design 100W Street Light for Residential Area and Town Lighting
Decription
LED Street Light
Power: 40W,60W,80W,100W
Input: AC100-347V
Pole Connector: φ60/φ50mm
Light Source: High light efficiency, low light depreciation, light source module
Shell: The lamp shell can dissipate the heat directly which improve the heat-sinking function and increase the lamp power. The lamp fixture, without heat-sinking tooth at the back, has good self-cleaning proerpties, not easy for dirt retention
Effect: Use PC lens, soft light and uniform illumination
Driver: Built-in
Firmness: The lamp fixture itself use PC lens, not traditiona glass, and aluminum, which is firm enough and convenient for transportation
IP Rating: IP65
DC driver without strobe
The shell can dissipate the heat directly
Built-in driver
IP65
Adopted the high power LED Light source which is independent researched and integrated packaging, equipped with light distribution system high strength tempered woven glass, thus making the lamp irradiation scope, intensity of illumination, evenness completely meet the requirement of city the City Road Lighting Design Standard
Pioneering radiator and lamp shell integration design, LED is closely connected with shell directly, through the shell cooling wing and air convection, it fully ensures the LED street light's life span to 50000 hours. According to the calculation for working 12 hours a day, the life also can cover 10 years, the maintenance cost is extremely low
Light shell adopts the aluminum alloy die-casting molding which can be effective cooling, waterproof and dustproof. The light surface is treated with the ultraviolet radiation resistant and corrosion resistant. The IP rating can up to IP65
High Lighting efficiency, vivid vision, no flicker. It has no harm to eyes and skin
Start without delay, it can b normal birightness once be powered without no waiting. Eliminate the traditional street ligths long time star
Environment friendly and no pollution. No mercury, lead or other harmful elements. High stability with no pollution to the air. They are the real environmental friendly products
Simple installation. The light has two installation ways, vertical installation and level installation
Feature
Good heat dissipation effect by the air convection
Eutectic welding without gold thread, to avoid the phenomenon of break and dead light
Good color rendering index, no flicker, green and energy saving, and environmental protection
LED driver based on intelligent constant current technique, prolonging the life
The light has been widely used in the road and square etc
Application
Suitable for Roads, Streets, Coomunities, Bridges, Residential Area and etc
City Road, Sidewalks, square, school, park, yard, residential areas, factory and other outdoor lighting area
Package and Delivery
Package: Carton box
Port: Shenzhen, Shanghai
Delivery: 3-5 days for samples
10-15 days for big quantity orders
Speficiation
| Model | Input | Packing Size | Working Temperature | Electric Safety Class | LPW |
| AN-LD4032-40-A-08 | AC100-347V | 723 x 182 x 385mm | -40 ～ 50℃ | Class I | 130LM/W |
| AN-LD5032-60-A-08 | AC100-347V | 723 x 182 x 385mm | -40 ～ 50℃ | Class I | 130LM/W |
| AN-LD5032-80-A-08 | AC100-347V | 723 x 182 x 385mm | -40 ～ 50℃ | Class I | 130LM/W |
| AN-LD5032-100-A-08 | AC100-347V | 723 x 182 x 385mm | -40 ～ 50℃ | Class I | 130LM/W |
Other Choice
| Model | Power | Input | LPW | PF | CRI | Ip Grate |
| AN-LD4032-40-A-08 | 40W | AC100-277V | 120LM/W | >0.95 | >70 | 65 |
| AN-LD5032-60-A-08 | 60W | AC100-277V | 120LM/W | >0.95 | >70 | 65 |
| AN-LD5032-80-A-08 | 80W | AC100-277V | 120LM/W | >0.95 | >70 | 65 |
| AN-LD5032-100-A-08 | 100W | AC100-277V | 120LM/W | >0.95 | >70 | 65 |
| AN-LD6032-120-A-08 | 120W | AC100-277V | 120LM/W | >0.95 | >70 | 65 |
| AN-LD6032-150-A-08 | 150W | AC100-277V | 120LM/W | >0.95 | >70 | 65 |
| AN-LD7032-200-A-08 | 200W | AC100-277V | 120LM/W | >0.95 | >70 | 65 |
Light Size
Light Distribution
