| Place of Origin: | China |
| Brand Name: | Aina |
| Certification: | CE, ROHS, TUV |
| Model Number: | AN-LHB |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5-7 days for samples |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pcs/month |
| Light Source: | LED | Input Voltage(v): | AC100-277V |
|---|---|---|---|
| Cri (ra>): | >83 | Item Type: | LED Linear Highbay Light |
| Working Lifetime(hour): | 50000 Hours | Lamp Body Material: | Matel House |
| Application: | Supermarket,office,WAREHOUSE,indoor,etc | Color Temperature(cct): | 2700-6500K |
| Power: | 65W-320W | ||
| Highlight: | high bay linear led lights,led linear high bay |
||

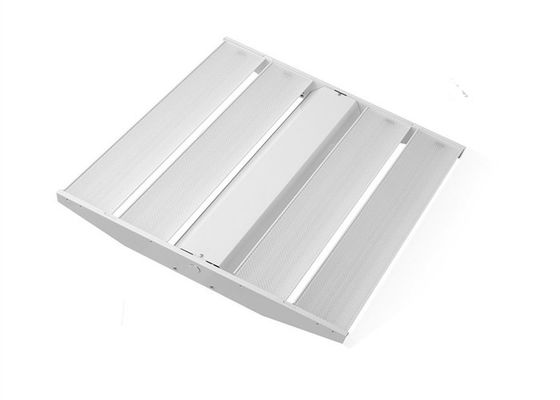

LED Linear Highbay 65W- 320W AC100-277V 4000K-5000K for Office and Hotel
Description
This Highbay light is a new generation of eco-firendly luminaire offering maxium light output, exceptional illumination, and energy savings.
This new LED luminaire gives budget-conscious customers a reliable LED high bay solution
In addition to its low initial cost, the fixture saves up to 60% in energy costs over HID and costs less to operate than popular fluorescent products-Not to mention the maintenance savings!
Cost Saving
Easy installation can save much more time and labor cost and it can provide vitrually maintenance-free Service
LED Light engines and drivers are filed replaceable
Electrical
90% lumen maintenance at 50000 hours
Predicted life of more than 100000 hours
Optics
Light distribution to meet both horizontal and vertical light level requirements
Reflectors are precision formed and painted a high reflectance white
Listings
ETL certified to us and canadian safety satandards.
Listed by ETL to meet UL 1598 standards for damp location and -35 degrees to 40 degrees ambient
Ambient operating temperatures vary referring to end-user enviroment and application
Construction
Lightweight heat sink designed to perform at warm ambient temperature
Due to precision thermal engineering for maximum naturally convective cooling this fixture provides lumen drop that is less than fluorescent
Specification
| Model Number | Power | CCT | CRI | Lumen | Input | Size |
| AN-LLB-12FT-65-03 | 65W | 4000K-5700K | >83 | 9100LM | AC100-277V | 1x 2 FT |
| AN-LHB-12FT-80-03 | 80W | 4000K-5700K | >83 | 11200LM | AC100-277V | 1 x 2FT |
| AN-LHB-12FT-100-03 | 100W | 4000K-5700K | >83 | 14000LM | AC100-277V | 1 x 2FT |
| AN-LHB-14FT-165-03 | 165W | 4000K-5700K | >83 | 23100LM | AC100-277V | 1 x 4Ft |
| AN-LHB-22FT-200-03 | 200W | 4000K-5700K | >83 | 28000LM | AC100-277V | 2 x 2Ft |
| AN-LHB-24FT-320-03 | 320W | 4000K-5700K | >83 | 44800LM | AC100-277V | 2 x 4FT |
Application
Ideal one-for -one replacement of conventional lighting systems such as HID and fluorescent
Applications include manufacturing, warehousing, gymnasiums, light industrial spaces, office, classroom, retail space, parking structure and other large indoor spaces with mounting heights ranging from 15'-40'
