130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body

130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body

  • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
  • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
  • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
  • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
Product Details:
Place of Origin: China
Brand Name: Aina
Certification: CE, ROHS, TUV
Model Number: AN-SF
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 -7 days for samples
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 per month
Contact Now
Detailed Product Description
Input Voltage(v): AC100-347V, AC100-277V,AC347-480V Cri (ra>): 83
Lamp Body Material: Aluminum Light Source: LED
Lamp Luminous Efficiency(lm/w): 130-140LM/W Application: Office,Supermarket,Warehouse,Factory,School
Product Name: Tri-proof Light Power: 40-120W
High Light:

tri proof lamp

,

waterproof led tube

Easy Connection LED Tri Proof Light from 40w to 120w AC100-347V AC347V-480V



Description

Designlights consortium (DLC) qualified LED tri-proof lights are engineered for powerful lighting in harsh environments.

The IP66 rated fixtures are designed to replace less-efficient fluorescent strip lights in car wash operations, airports, tunnels, maintenace areas, Parking garages and stairwells

A vapor tight housing protects the light source from water and dirt, while new generation LEDs and drivers provide higher efficacy and greater energy savings



Power

40w-120w



Features

Life time over to 50000 hours

Multiple mounting option

Suitable for wet location

ETL & Premium DLC 120-140LM/W

5 years warranty

UGR less than 20

0-10V dimmable is available, compatible with DALI dimmer

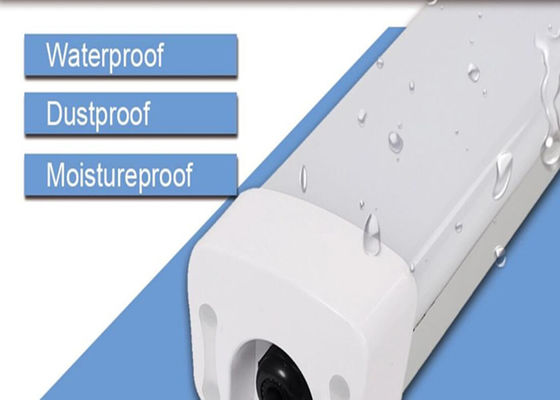

Water proof, dustproof, Moistureproof

Over 60% energy saving compared to fluorescent fixtures

Excellent thermal conductivity and heat dissipation



Specification

Model Input Power Size LPW Lumen CRI
AN-SF-4FT-40-03 AC100-277V, QC100-347V, AC347-480V 40W 4FT 130-150LM/W 5600LM >83
AN-SF-4FT-60-03 AC100-277V, QC100-347V, AC347-480V 60W 4FT 130-150LM/W 8500LM >83
AN-SF-5FT-80-03 AC100-277V, QC100-347V, AC347-480V 80W 5FT 130-150LM/W 11200LM >83
AN-SF-8FT-90-03 AC100-277V, QC100-347V, AC347-480V 90W 8FT 130-150LM/W 13600LM >83
AN-SF-8FT-120-03 AC100-277V, QC100-347V, AC347-480V 120W 8FT 130-150LM/W 16800LM >83



Using Premium Pure Gold Wire for LED Chips

Premium 99.99% pure gold wire

1. Double gold wire welding technology

2. Good conductivity

3. Good welding

4. Long life span

5. Qaulity assurance



Product Benifits

Operational

3X greater lamp life than fluorescent, supported by industry-leading 5 years warranty

50000 hours lamp life reduces long-term maintenace costs

Sealed, vapor-tight, water-resistant, IP65 fixture



Sustainability

Lack of UV or IR minimizes concerns with fading or discoloration

Mercury-free, allowing for non-hazardous disposal



Application

Wet Environments & Walkway Canopies

Harsh Evironments

Hospital

School and Gymnasiums

Recreation centers

130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body 0







Easy Connection

130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body 1

130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body 2



130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body 3130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body 4

Parts

130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body 5





About Us

Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.

•Headquartered in Shanghai
•Research & development center located in Shanghai
•Sales center located in Beijing

Complemented by a team of professionals with over ten (10) years of experience in the lighting industry



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality . Mixed samples are acceptable



Q2. What about the lead time?

A: Sample needs 3-5 days. Mass procution time needs 1-2 weeks.



Q3. Do you have any MOQ limit for LED light order?

A: Low MOQ. 1 pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, Fedex or TNT. It usually take 3-5 days to arrive. Airline and sea shipping also optional.
