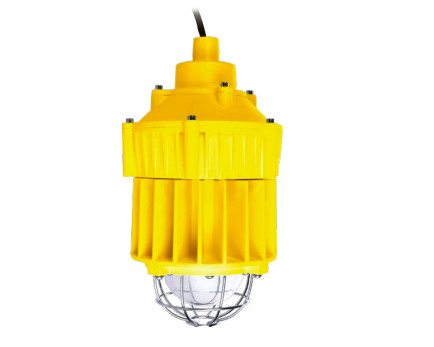

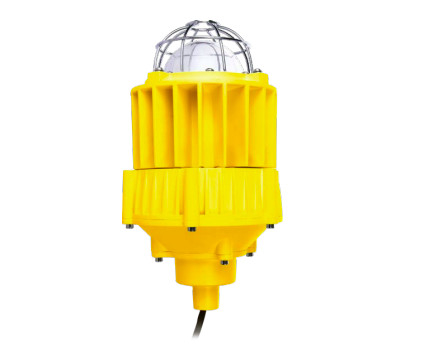

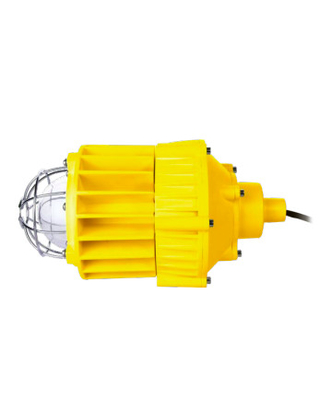

Outdoor Waterproof 22W led explosion proof lighting Aluminum Shell For Gas Station

1.1 Feature of the product
• This LED Explosion Proof Lights series (hereinafter referred to as the
light) is a kind of environmental friendly lights which comes from our
company, designed according to the “electrical equipment in Explosive
gases environment” standard.
• The shell is forming the with aluminum alloy die-casting, treating with
high-tech spray coating, abrasion resistance corruption, waterproof and
dustproof.
• Reasonable structure design, greatly increases the heat dissipation area,
reduce the temperature rise and improve the life span of the light source.
• Adopted the high power LED light source which is independent
researched and integrated packaging, high color rendering index, high
lighting efficiency, life span can reach 50000 hours.
• Equipped with the special design of light distribution system, even
intensity of illumination.
• In the same intensity of illumination , it can save 60% electricity than
high pressure sodium, and 80% electricity than incandescent bulbs.
•CNEx09.1753
Adopted ceiling type, derrick type, and other variety type of installation.
Easy to operate. This product has passed the national anti-explosive
electric product quality supervision and inspection center for qualified,
flame-proof certification number is CNEx09.1753.
1.2 Product usage
Applied in petroleum, chemical flammable environment for safety
lighting.
1.3 Scope of application
Flammable gas environment:Area 1, Area 2
Explosive gas environment: ⅡA,ⅡB；
Temperature category: T1~T5
Explosion mark: ExdⅡBT5
1.4 Environment condition
Environment temperature: -20℃~40℃
Air pressure: 0.8~1.1×105Pa;
Altitude: 2000m
The air around on average relative humidity for no more than 95%
(25 ℃)
In the no damage insulation gas or steam environment

2 Structure
The light is the fixed using type , while the whole structure is
explosion-proof structure, the light consists of different parts such as light
source cavity, power points cavity and wiring cavity.
1 Pressure nut or explosion proof pipe joints (According to customer
requirements with different explosion-proof pipe joints)
2. Wiring cavity cover
3. Light source cavity cover
4. Light source cavity
5. Heat sink
6. Transparent cover
7. Reflector
8. LED Light source
9. Power source


4 4 Use and Installation
4.1 According to the environment needs, affirmatory lamps installation
way and position, and prepare the corresponding length of φ 5 mm or φ 8
mm of three core cable.
4.2 Open the wring cavity fixed screw, put the three core cable end
through the flat rubber gaskets and column(According to the introduction
of the light body by wring cavity inside, fixed the cable line of fire, zero
respectively in the terminals, fixed the ground line where there is a sign
of the ground line. When the conductors and terminals are connected,
must pay attention to keep the electric distance ≧? , adjust the cable
length, then tighten steel tube, and pick up the wring cavity fixed seal.)
4.3In the installation position of selected, install an explosion-proof
junction box (user should bring along with their own) to fix the lights
CRI >70
Frequency 50/60
Color Temperature 2700-6500k
IP Rating IP65
Lighting Efficiency ≥90
Insulation Grade CLASS I
Life Span 50,000 H
Inlet's thread 1/2
Wight 4.2
installation.
4.4 Put the other end of the cable in the explosion on 220 V power
supply according to the requirements ,then the light can be lighting.



Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



Shipment
Seaport: Tianjin, Shanghai or Shenzhen
Production time:
The prepare time for item for samples is 7-10 days
The production time for normal order is 10-20 days
Others:
All the items will be test before shipment.
All the goods are sent from China for now.
All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.
Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.
