Place of Origin: | China |
Brand Name: | Aina |
Certification: | CE, Rohs |
Model Number: | AN-LD-Housing |
Minimum Order Quantity: | 100 |
---|---|
Packaging Details: | Carton |
Delivery Time: | Sample needs 5-7 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000/month |
Material: | Die-cast Aluminum | CCT: | 6000K / 4000K / 3000K |
---|---|---|---|
CRI: | 80 | Beam Angle: | 90 * 120 ° |
Voltage: | AC175-265V | Lifespan: | 30000hours |
Product Weight: | 2 Kg | IP: | IP66 |
Light Power: | 50W,100W,150W | ||
High Light: | 4000k outdoor led street lights,175v outdoor led street lights,ip66 outside street lights 50w |

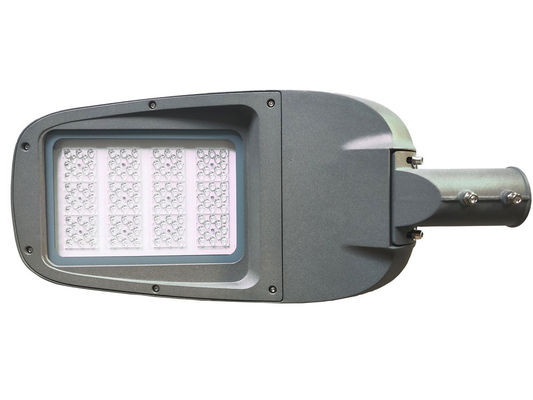

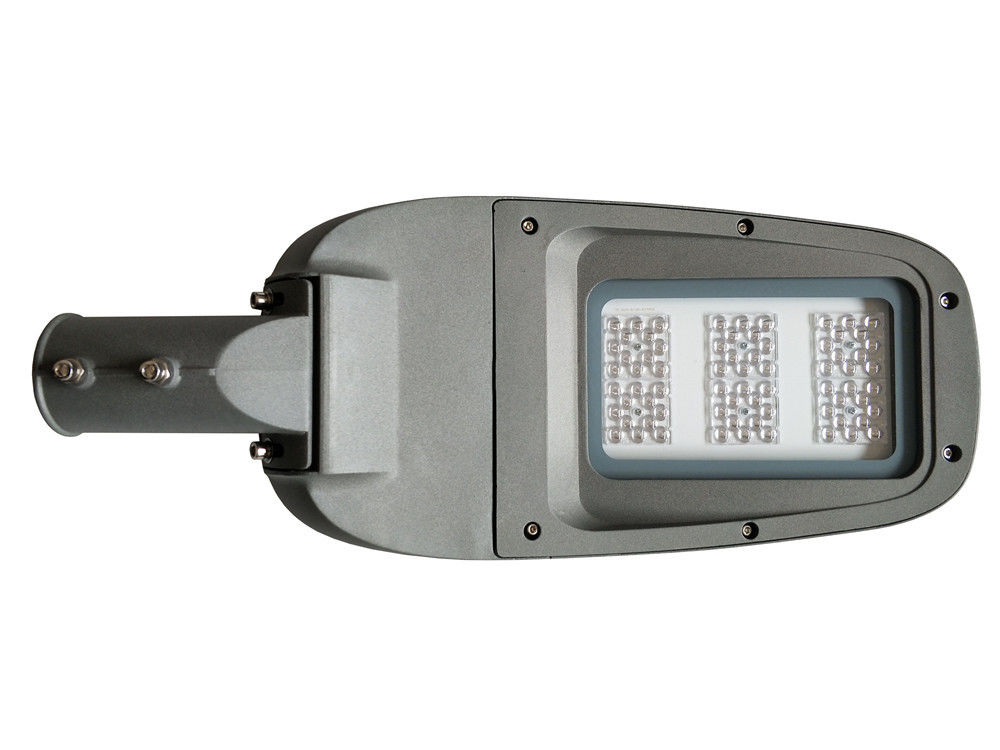

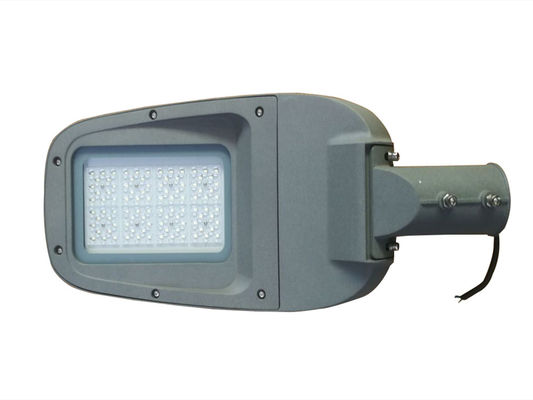

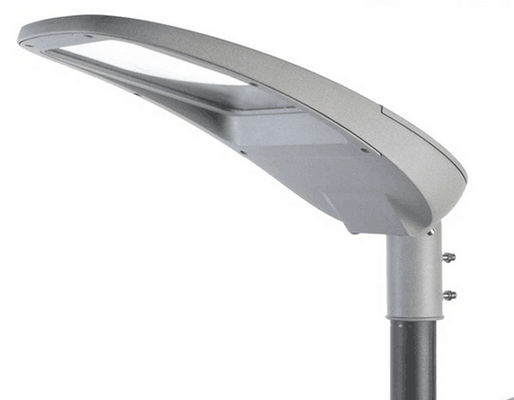

Outdoor LED Street Light house Aluminum SKD Road Lamp for Light factory
OVERVIEW
Basic Specification
Material | Aluminum | Part | Housing, PCB board and Lends |
IP | IP65 | For Power | 50w, 80w, 100w, 150w and 220w |
Delivery | 10 days | Warranty | 3 years |
Feature
The housing is produced from ADC12 aluminum ingot with 800T high pressure die casting machine
ADC12 aluminum we used is passed the ROHS testing by SGS, with ROHS directive (EU) 2015/863 amending Annex II to directive 2011/65/EU
With reference to IEC 62321-4, 2003+A1, 2017, IEC 62321-5: 2013 and IEC 62321-7-1, 2015, analyzed by ICP-OES
The housing is designed and produced according to the IP65 waterproof standard of outdoor lighting industry
Silicon waterproof seal gasket is used for housing and tempered glass, and M16 waterproof cable gland is used for cable pass through the housing to ensure the IP65 waterproof grade to guarantee the safe performance and long life use of the lamp
The housing is designed and produced for a too-free maintenance lamp, used a hand screws to lock and unlock the cover without screwdriver or other tools easily
But the screw is customized to have an indentation on the top so that also the flat head screwdrivers can be used when it is necessary to lock the cover more tighter
The housing is designed and produced with photocell sensor option
The factory standard is without the photocell sensor, but the photocell sensor mounting holes will be drilled according to customer’s request mounting the photocell sensor on the street lamp
Application
Yard, garden, Park, or any Party place or wedding place.
Delivery & Warranty
Selling Unites: Single Item
MOQ: 1000 pieces for each model
Customization: Customized Logo -1000 pieces / Customized Package- 10000 pcs
Production time: 5-7 days for samples / 10-15 days for standard orders
Warranty: 2-3 years
SHIPPING
The prepare time for item is around 10-15 days. All the items will be test before shipment.
All the goods are sent from China for now.
All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc. Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.
Packing
With years of export experience along with excellent quality, advanced services and competitive prices, Aina Lighting has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Aina Lighting has won customers' trust and support.
Our Service
Enquiry and email will be replied within 24 hours.
OEM & ODM are welcome. Any customized design and logo are available.
We own purchase and marketing team with abundant knowledge and
10 years operational experience in LED semiconductor lighting, will provide strong technical support and solution to our customers.
Rigorous QC team, each LED light will be lighting 24 hours before delivery, it will ensure our general failure rate is less than 0.2%, outdoor lights failure rate less than 0.05%
Special discount and protection of sales are provided to our brand distributor.
About us
Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.
Our company is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.
FAQ
Q: How to find us?
A: Our email: sales@aina-4.com or whatsapp / wiber: +86 13601315491 or wechat: 17701289192
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check. The samples fee you paid will be return to you when there is formal orders step by step.
Q: How can I get your price?
A: We will send you quotation within 24 hours after getting your inquiry. If you need price urgent, you can find us any time by whatsapp or wechat or viber
Q: What is your delivery time
A: For samples, normally will take around 5 days. For Normal order will be around 10-15 days
Q: What about the trade terms?
A: We accept EXW, FOB Shenzhen or Shanghai, DDU or DDP. You can choose the way which is the most convenient or cost effective for you.
Q: Can you add our logo on the products?
A: Yes, we can offer service of adding customers’ logo.
Q: Why Choose us?
A: We have three factories in different places focusing one different type of lights. We can offer more lighting choices for you.
We have different sales office, can offer you more Awesome services.
