Place of Origin: | CHINA |
Brand Name: | AINA lighting |
Certification: | CE,RoHS |
Model Number: | AN-wall-80w |
Minimum Order Quantity: | 1000 |
---|---|
Packaging Details: | Carton |
Delivery Time: | Samples need 3-5 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 10000/month |
Power: | 60W | Input Vpltage: | AC 175-265V |
---|---|---|---|
Material: | Iron | Application Area: | 20㎡ |
Control: | Switch | Light Type: | Ultraviolet |
Hosing Color: | White | IP Rate: | 20 |
High Light: | 60w 175v uv air sterilizer,60w 265v uv air sterilizer,20m2 uv light sanitizer commercial |

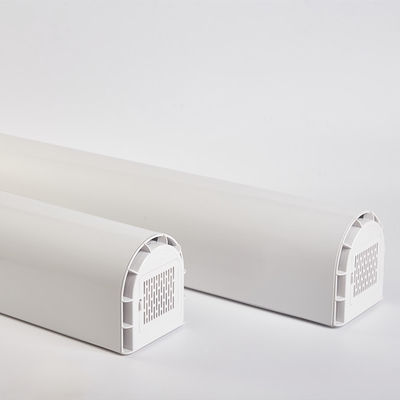

UV Sterilizer 60W with Hidden Light Source Type for School and Family Use
Feature
Active convection: A fan is designed at one end of the product to introduce indoor air into the sterilization chamber. The air sterilized by the UVC ultraviolet light source flows out from the upper air outlet and flows into the room, using active convection to circulate and purify the air.
Work instructions: There is a work indicator on the product. When the power is turned on, the indicator does not light up, which means that the product's UV light source is damaged and a new UV light source needs to be replaced.

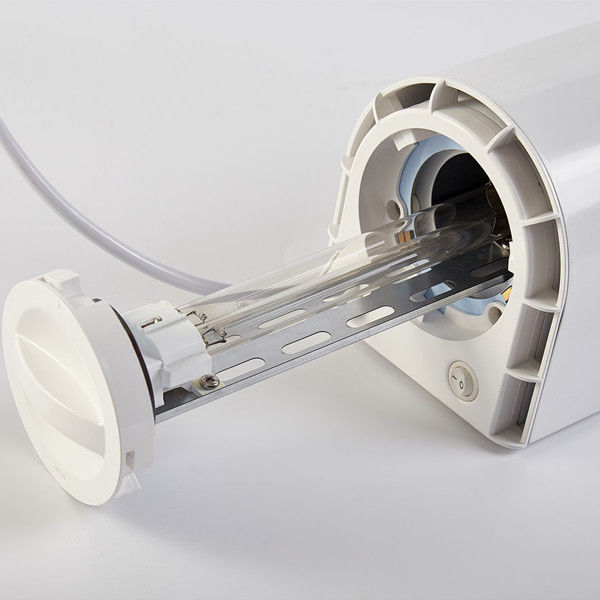

Light source replacement: Unscrew the knob on the right side of the product to take out the light source assembly, remove the light source from the lamp holder and replace it with a new light source, and then turn on the knob in the reverse direction to complete the light source replacement. The replacement process does not require tools and does not need to consider circuit connection issues, which is simple and convenient.
Filter replacement: A filter is designed on the left end cover of the product to ensure the cleanliness of the inside of the product. Press the buckle of the filter cover to remove the filter for replacement without any tools.
Installation method: The product is fixed by hanging, first fix the hanging plate on the vertical installation surface, and then hang the product on the hanging plate, and the product is fixed and moved vertically upwards and designed with an anti-drop structure. Simple and safe installation
Specification Item |
AN1331UV40 | AN1359UV60 |
Rated Power | 40W | 60W |
Rated Voltage | AC220V/50Hz | AC220V/50Hz |
PF | ≥0.9 | ≥0.9 |
Light Source | Philips TUV PL-S | Philips TUV PL-L |
Peak Wavelength | 253.7nm | 253.7nm |
Life time of the light source | 9000h | 9000h |
Type of Sterilization | Common bacteria, viruses and other microorganisms | Common bacteria, viruses and other microorganisms |
Using Area | 10-15m² | 15-20m² |
Filter Changing Time | 3-6 months | 3-6 months |
Working Time | Can work for long time | Can work for long time |
IP | IP20 | IP20 |
Electrical Safety Level | CLASS I | CLASS I |
Surface Treatment | Anticorrosive spray | Anticorrosive spray |
Installation Way | Vertical mounting | Vertical mounting |
Light Size | 318*133*121mm | 638*133*121mm |
NW | 2.1Kg | 3.8Kg |
Standard | GB28235;GB19258;Q/141000 GY008—2021 |
Application
This product is suitable for sterilizing and purifying air in restaurants, cafes, bars, shopping malls, schools, homes, hospitals and other indoor place.
Installation and Maintenance Methods
Unpacking: Open the packing box, take out the product, and check whether the product is in good condition and the accessories are complete.
Fixed installation: Use the fixing holes on the mounting plate to vertically fix the mounting plate on the mounting surface.
Lift the product upward at a certain angle, and hang the hook hole on the product on the hook of the mounting plate. After letting go, the product adheres to the mounting plate by gravity and the installation is completed.
When the product is close to the hanging plate, the anti-off hook of the hanging plate is inserted into the anti-off hole on the product to prevent the product from moving upward and falling off. When disassembling the product, first lift it outwards to a certain angle and then move it upwards to remove the product.
Light source replacement: When the product is switched on, the indicator light does not light up, which means that the UV light source is damaged and a new light source needs to be replaced. Turn the knob counterclockwise according to the label, and take out the UV light source assembly. After taking the old UV light source and replacing it with a new one, rotate the UV light source assembly clockwise and fix it on the right end cover.
FAQ
Q: How to find us?
A: Our email: sales@aina-4.com or whatsapp / wiber: +86 13601315491 or wechat: 17701289192
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check. The samples fee you paid will be return to you when there is formal orders step by step.
Q: How can I get your price?
A: We will send you quotation within 24 hours after getting your inquiry. If you need price urgent, you can find us any time by whatsapp or wechat or viber
Q: What is your delivery time
A: For samples, normally will take around 5 days. For Normal order will be around 10-15 days
Q: What about the trade terms?
A: We accept EXW, FOB Shenzhen or Shanghai, DDU or DDP. You can choose the way which is the most convenient or cost effective for you.
Q: Can you add our logo on the products?
A: Yes, we can offer service of adding customers’ logo.
Q: Why Choose us?
A: We have three factories in different places focusing one different type of lights. We can offer more lighting choices for you.
We have different sales office, can offer you more Awesome services.
