Home ProductsUFO LED High Bay Light

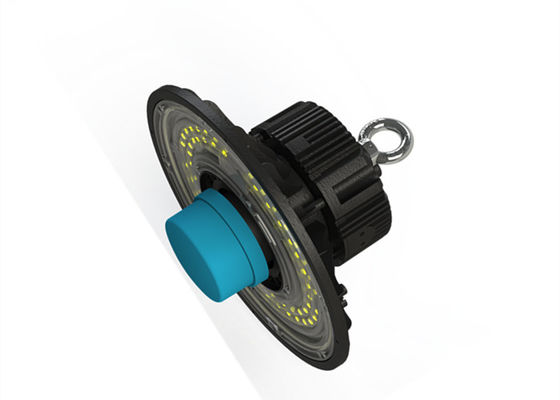

Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings

Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings

    • Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings
    • Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings
    • Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings
    • Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings
  • Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings

    Product Details:

    Place of Origin: China
    Brand Name: Aina
    Certification: CE, ROHS, TUV
    Model Number: AN-RHB

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pcs
    Price: Negotiabble
    Packaging Details: Carton
    Delivery Time: 5-7 days for samples
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 6000 pcs per month
    Contact Now
    Detailed Product Description
    Power: 100W,150W,200W Input: AC347-480V
    CRI: >83 CCT: 3000K-5700K
    Material: Aluminum Housing Light Type: UFO Highbay Light
    PF: 0.95 IP: IP65

    LED Round Industrial Lamp 100W,150w,200w IP66 Outdoor Lighting for Buildings



    Description

    LED Highbay Light

    Round LED industrial Light

    Input is AC347-480V

    Power: 100W,150W,200W

    PF: 0.95/0.94

    Dimmable can be choosed (0-10V)



    Features

    Up to 150LM/W, The light power from 100-240W can replace HID of 200-1000 watts

    Integrated cooling ribs for effective heat tranfer

    Aiming angles can be adjusted with an increment of 15 degrees

    IP66 and IK10 reted

    Integrated cooling ribs for effective heat transfer

    Die-Case aluminum housing, polyester powder painted finished, corrosion resistant

    Lens material; UV-stabilized polycarbonate (PC) from bayer

    Sealing gasket made with materials from down corning, maintaining high performance between -60 degrees to 180 degrees

    Aiming angles can be adjusted with an increment of 15 degrees



    Specification

    Model Power Size LED PF LPW
    AN-RHB-260-100-05 100W 160*165mm

    168

    21S8P

    0.94 150LM/W
    AN-RHB-305-150-05 150W 305*171mm

    252

    21S12P

    0.94 150LM/W
    AN-RHB-345-200-05 200W 305*171mm

    336

    21S16P

    0.94 150LM/W



    Other choice

    Modle Input LPW PF CCT Power Lumen LED Size Dimmabler
    AN-RHB-260-150-05 AC100-277V 150LM/W 0.95 3000K-6700K 100W 15000LM

    168

    7S24P

    260*165mm Optional(0-10V)
    AN-RHB-260-150-05 AC100-277V 150LM/W 0.95 3000K-6700K 150w 22500LM

    252

    7S36P

    305*171mm Optional(0-10V)
    AN-RHB-260-200-05 AC100-277V 150LM/W 0.95 3000K-6700K 200w 30000LM

    336

    7S48P

    345*181mm Optional(0-10V)





    Packaging and Delivery

    Selling Units: Single Item

    Package type: 1 pc in a cartong

    Lead time: 5 days for samples



    Model Packaging Size Weight
    AN-RHB-260-100-05 310 x 310 x 162mm 2.85kg
    AN-RHB-305-150-05 345 x 345 x 180mm 3.74kg
    AN-RHB-345-200-05 395 x 395 x 192mm 3.73kg





    Dimming Function



    3-Step dimming function

    This sensor can achieve 3-step dimming function, 100%--->low light...>off.

    And the sensors build in adjustable daylight sensors, very easy to install and cost-effective

    Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings

    Detection Pattern

    Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings

    Setting

    By selecting the combination on the DIP switch, sensor data can be precisely set for each specific application



    Detection area

    Detection area can be reduced by selecting the combination on the DIP switches to fit precisely each application



    Hold Time

    Refers to the time period the lamp remains at 100% illumination afterno motion detected



    Stand-by period

    refers to the time period the lamp remains at a low light level before it completely switchs off in the long absence of people

    When set to disable mode, the low light is maintained until motion is detected



    Stand-by Dimming Level

    The low light level you would like to have after the hold time is the long absence of people



    Daylight sensor

    The sensor can be set to only allow the lamp to illuminate below a defined ambient brightness threshold

    When set to disable mode, the daylight sensor will switch on the lamp when motion is detected regardsless of ambient light level

    Note that daylight sensor is active only when lamp totally switches off



    Pictures

    Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings

    Round Industrial UFO LED High Bay Light 100W 150W 200W IP66 Outdoor Buildings





    Our Service

    We have our own R & D group. Can design or improve lighting based on customers' requirements

    We can offer OEM service. Customers can use their own brand.

    Promptly reply within 24 hours

    Well-trained, professional and experienced salesman with good English

    OEM and ODM are welcomed

    3-5 years warranty for our LED lights

    We will responsible to maintenance or replace any defective products within warranty period

    We will keep secret of your sales area, design ideas and all of your private information

    We have different production lines for different lighting. It can make delivery time faster than others



    FAQ

    Q1. Do you offer guarantee for the products?

    A: Yes, we offer 2-5 years warranty to our products



    Q2. Are you Factory?

    A: Yes, we are factory, not trading company



    Q3. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, Fedex or TNT. It usually take 3-5 days. Airline and sea shipping also optional



    Q4. What is the delivery time?

    A: 5 days for samples. 15-20 days for big quantity orders



    Q5. Can I help us to check the items before shipment?

    A: Yes, we have quality control people will check all the light quality before shipment
