130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body

130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body

    • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
    • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
    • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
    • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body
  • 130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body

    Product Details:

    Place of Origin: China
    Brand Name: Aina
    Certification: CE, ROHS, TUV
    Model Number: AN-SF

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 5 -7 days for samples
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000 per month
    Contact Now
    Detailed Product Description
    Input Voltage(v): AC100-347V, AC100-277V,AC347-480V Cri (ra>): 83
    Lamp Body Material: Aluminum Light Source: LED
    Lamp Luminous Efficiency(lm/w): 130-140LM/W Application: Office,Supermarket,Warehouse,Factory,School
    Product Name: Tri-proof Light Power: 40-120W

    Easy Connection LED Tri Proof Light from 40w to 120w AC100-347V AC347V-480V



    Description

    Designlights consortium (DLC) qualified LED tri-proof lights are engineered for powerful lighting in harsh environments.

    The IP66 rated fixtures are designed to replace less-efficient fluorescent strip lights in car wash operations, airports, tunnels, maintenace areas, Parking garages and stairwells

    A vapor tight housing protects the light source from water and dirt, while new generation LEDs and drivers provide higher efficacy and greater energy savings



    Power

    40w-120w



    Features

    Life time over to 50000 hours

    Multiple mounting option

    Suitable for wet location

    ETL & Premium DLC 120-140LM/W

    5 years warranty

    UGR less than 20

    0-10V dimmable is available, compatible with DALI dimmer

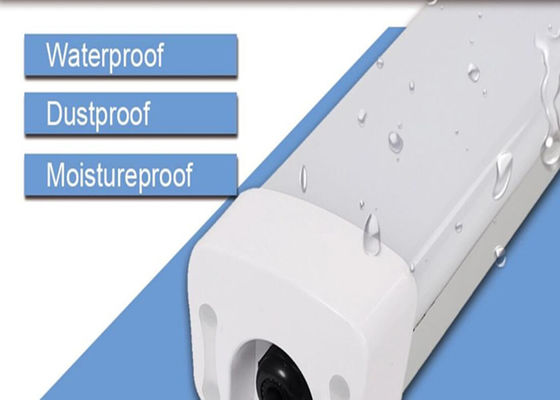

    Water proof, dustproof, Moistureproof

    Over 60% energy saving compared to fluorescent fixtures

    Excellent thermal conductivity and heat dissipation



    Specification

    Model Input Power Size LPW Lumen CRI
    AN-SF-4FT-40-03 AC100-277V, QC100-347V, AC347-480V 40W 4FT 130-150LM/W 5600LM >83
    AN-SF-4FT-60-03 AC100-277V, QC100-347V, AC347-480V 60W 4FT 130-150LM/W 8500LM >83
    AN-SF-5FT-80-03 AC100-277V, QC100-347V, AC347-480V 80W 5FT 130-150LM/W 11200LM >83
    AN-SF-8FT-90-03 AC100-277V, QC100-347V, AC347-480V 90W 8FT 130-150LM/W 13600LM >83
    AN-SF-8FT-120-03 AC100-277V, QC100-347V, AC347-480V 120W 8FT 130-150LM/W 16800LM >83



    Using Premium Pure Gold Wire for LED Chips

    Premium 99.99% pure gold wire

    1. Double gold wire welding technology

    2. Good conductivity

    3. Good welding

    4. Long life span

    5. Qaulity assurance



    Product Benifits

    Operational

    3X greater lamp life than fluorescent, supported by industry-leading 5 years warranty

    50000 hours lamp life reduces long-term maintenace costs

    Sealed, vapor-tight, water-resistant, IP65 fixture



    Sustainability

    Lack of UV or IR minimizes concerns with fading or discoloration

    Mercury-free, allowing for non-hazardous disposal



    Application

    Wet Environments & Walkway Canopies

    Harsh Evironments

    Hospital

    School and Gymnasiums

    Recreation centers

    130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body







    Easy Connection

    130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body

    130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body



    130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body

    Parts

    130-140LM/W LED Tri Proof Light 40w-120w AC100-347V AC347V-480V Aluminum Body





    About Us

    Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.

    •Headquartered in Shanghai
    •Research & development center located in Shanghai
    •Sales center located in Beijing

    Complemented by a team of professionals with over ten (10) years of experience in the lighting industry



    FAQ

    Q1. Can I have a sample order for led light?

    A: Yes, we welcome sample order to test and check quality . Mixed samples are acceptable



    Q2. What about the lead time?

    A: Sample needs 3-5 days. Mass procution time needs 1-2 weeks.



    Q3. Do you have any MOQ limit for LED light order?

    A: Low MOQ. 1 pc for sample checking is available



    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, Fedex or TNT. It usually take 3-5 days to arrive. Airline and sea shipping also optional.
