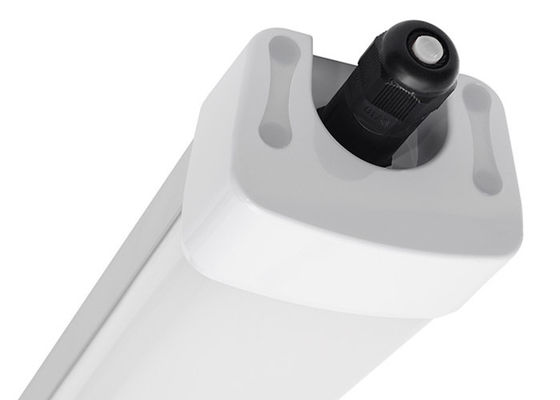

6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments

6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments

    • 6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments
    • 6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments
    • 6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments
    • 6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments
  • 6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments

    Product Details:

    Place of Origin: China
    Brand Name: Aina
    Certification: CE, ROHS, TUV
    Model Number: AN-SF-4FT-60-03

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 5 -7 days for samples
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000 per month
    Contact Now
    Detailed Product Description
    Input Voltage(v): AC100-347V Cri (ra>): 83
    Lamp Body Material: Aluminum Light Source: LED
    Lamp Luminous Efficiency(lm/w): 130-140LM/W Application: Office,Supermarket,Warehouse,Factory,School
    Product Name: Tri-proof Light Power: 60W

    LED Tri-Proof Lighting Dustproof 60W for Harsh Evironments 6000K



    Description

    Light Tpye: LED Tri-Proof Light

    CCT: 2800K-6500K

    PF: 0.99>120V, 0.94>277V

    Size: 1200 x 90 x 65

    Operation temperature: -20 degrees to 40 degrees

    Design Lights consortium (DLC)-Qualified LED Tri-proof lights are engineered for powerful lighting in harsh environments.

    A vapor tight housing protects the light source from water and dirt, while new generation LEDs and drivers provide higher efficacy and greater energy savings

    The IP66-rated fixtures are designed to replace less-efficient fluorescent strip lights in car wash operations, airports, tunnels, mantenace areas, parking garages and stairwells



    Power

    60w



    Features

    5 Years warranty

    UGR less than 20

    0-10V dimmable is available.

    Compatible with DALI dimmer

    IP65, 100-277V is available

    Waterproof, dustproof, moistureproof

    Over 60% energy saving compared to fluorescent fixtures

    Excellent thermal conductivity and heat dissipation

    High optical PC Cover with 93% transmission

    Stainless steel spec grade clips

    Life time over to 50000 hours

    Multiple mounting option



    Specification

    Model Input CRI CCT Power Size PF LPW Lumen Linking
    AN-SF-4FT-60-03 AC100-347V >83 3000K,3500K,4000K,5000K 60w 4FT 0.99@120V 120-150LM/W 8400LM 600W/120V, 600W/277V
    AN-SF-5FT-80-03 AC100-347V >83 3000K,3500K,4000K,5000K 80W 5FT 0.99@120V 120-150LM/W 11200LM 600W/120V, 600W/277V
    AN-SF-8FT-90-03 AC100-347V >83 3000K,3500K,4000K,5000K 90W 8FT 0.99@120V 120-150LM/W 13200LM 600W/120V, 600W/277V
    AN-SF-8FT-120-03 AC100-347V >83 3000K,3500K,4000K,5000K 120W 8FT 0.99@120V 120-150LM/W 16800LM 600W/120V, 600W/277V



    Construction

    PC covers + Aluminum housing body

    Translucent white cover or clear cover optional

    Universal voltage 100-347V



    Connection

    Input cord with male connector

    Maximum series connection power 600W/120V

    Maximum series connection power 600W/277V



    Product Benifits

    Operational

    3X greater lamp life than fluorescent, supported by industry-leading 5 years warranty

    50000 hours lamp life reduces long-term maintenace costs

    Sealed, vapor-tight, water-resistant, IP65 fixture



    Application

    Warehouses

    Parking Garages

    Wet Environments & Walkway Canopies

    Harsh Evironments

    Hospital

    School and Gymnasiums

    Recreation centers



    6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments



    Parts

    6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments



    About our Driver

    6000K Tri Proof LED Light , 60W Waterproof LED Shop Lights Harsh Evironments
