Home ProductsLED Tri Proof Light

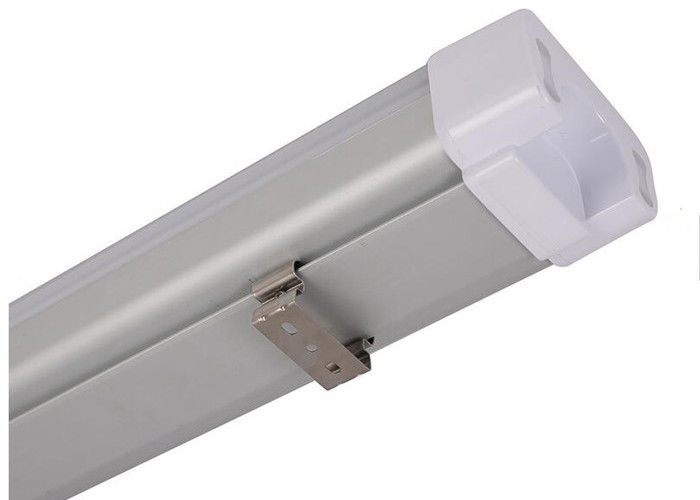

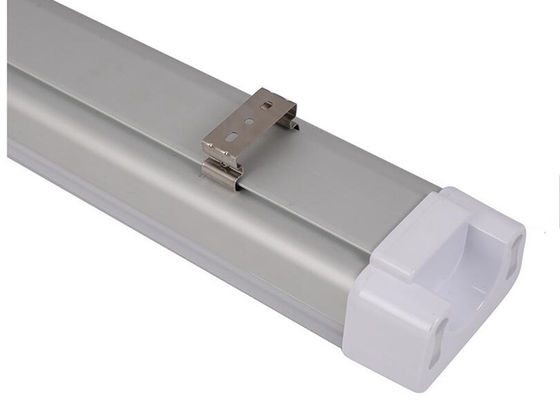

Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty

Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty

  • Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty
  • Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty
  • Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty
  • Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty
Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty
Product Details:
Place of Origin: China
Brand Name: Aina
Certification: CE, ROHS, TUV
Model Number: AN-SF
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 -7 days for samples
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 per month
Contact Now
Detailed Product Description
Input Voltage(v): AC100-277V Cri (ra>): 83
Lamp Body Material: Aluminum Light Source: LED
Lamp Luminous Efficiency(lm/w): 130-140LM/W Application: Office,Supermarket,Warehouse,Factory,School
Product Name: Tri-proof Light Power: 30W-120W
High Light:

waterproof led shop lights

,

waterproof led tube

LED Dustproof and Moistureproof Lights 30W to 120W AC100-277V



Description

Design Lights consortium (DLC)-Qualified LED Tri-proof lights are engineered for powerful lighting in harsh environments.

A vapor tight housing protects the light source from water and dirt, while new generation LEDs and drivers provide higher efficacy and greater energy savings

The IP66-rated fixtures are designed to replace less-efficient fluorescent strip lights in car wash operations, airports, tunnels, mantenace areas, parking garages and stairwells



Power

30-120W



Features

Suitable for wet location

ETL & Premium DLC 120-140LM/W

5 Years warranty

UGR less than 20

0-10V dimmable is available.

Compatible with DALI dimmer

IP65, 100-277V is available

Waterproof, dustproof, moistureproof

Over 60% energy saving compared to fluorescent fixtures

Excellent thermal conductivity and heat dissipation

High optical PC Cover with 93% transmission

Stainless steel spec grade clips



Specification

Model Input CRI CCT Power Size PF LPW Lumen
AN-SF-4FT-40-03 AC100-277V >83 3000K,3500K,4000K,5000K 40w 4FT 0.99@120V 140LM/W 5600LM
AN-SF-4FT-60-03 AC100-277V >83 3000K,3500K,4000K,5000K 60w 4FT 0.99@120V 140LM/W 8400LM
AN-SF-5FT-80-03 AC100-277V >83 3000K,3500K,4000K,5000K 80W 5FT 0.99@120V 140LM/W 11200LM
AN-SF-8FT-90-03 AC100-277V >83 3000K,3500K,4000K,5000K 90W 8FT 0.99@120V 140LM/W 13200LM
AN-SF-8FT-120-03 AC100-277V >83 3000K,3500K,4000K,5000K 120W 8FT 0.99@120V 140LM/W 16800LM



Light Distribution Curve

Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty 0





Application

Food Processing

Facilities

Warehouses

Parking Garages

Wet Environments & Walkway Canopies

Harsh Evironments

Hospital

School and Gymnasiums

Recreation centers



Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty 1



Parts

Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty 2



About our Driver

Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty 3
